You get 10 pdf files for printing with this plan.

The PDFs will print as two different sizes without altering scale. 1/8 inch=1 ft scale//1/4 inch=1ft scale. The Prints can be three different sizes. letter//18 x 24// and 24 x 36. The 18 x 24 prints just aren’t to scale but they sure are nice to have. The key thing here is that you only have to print the copies you need. For more information and advice on printing go to our Print Page.

Page 1——-Front Elevation

Page 2——-All Elevations Plan

Page 3——-Foundation Plan

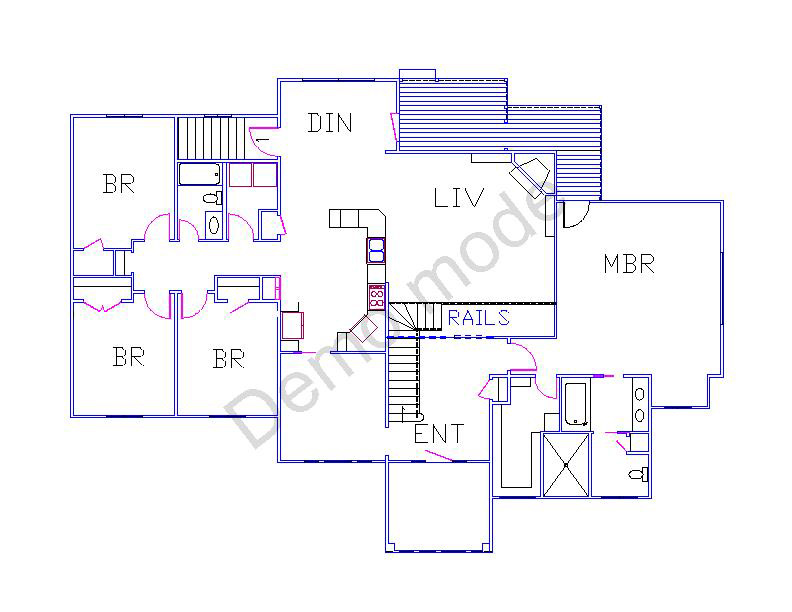

Page 4——-Floor Plan

Page 5——-2nd Floor Plan

Page 6——-Roof Plan

Page 7——-Electrical Plan

Page 8——-2nd Floor Electrical Plan

Page 9——-Cornish Plan and ‘Details for Page 3’

Page 10——-Empty Plan for HVAC

Plan specs:

This plan has the three bedrooms above the garage. For a flat lot, simply remove the garage and enlarge the utility room and bathroom.

All of our plans can be reversed for no charge. Turn around is about ten days if they have not yet been reversed.

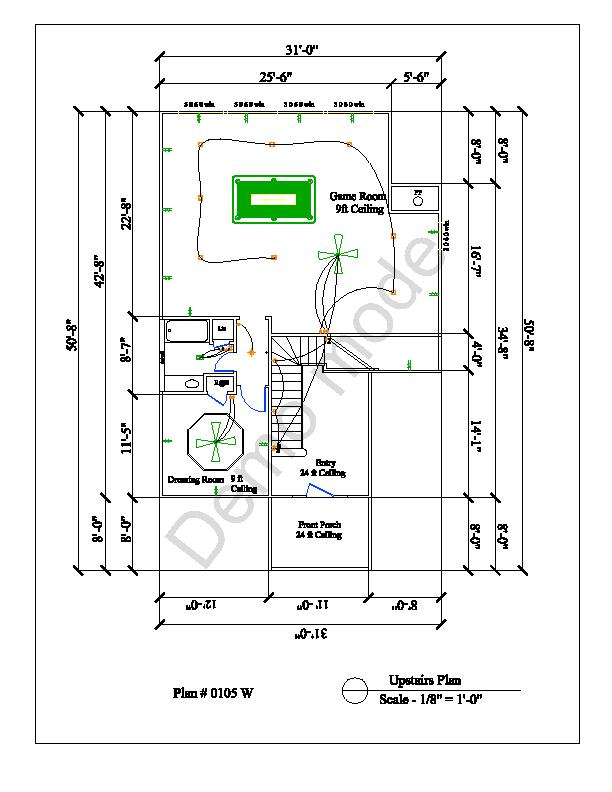

Upstairs is designed with a game room. This can be redesigned for bedrooms. Remember, we give you the cad files at no extra charge, so an architect in your district can make changes. Other sites can charge upwards of two thousand dollars for these.
